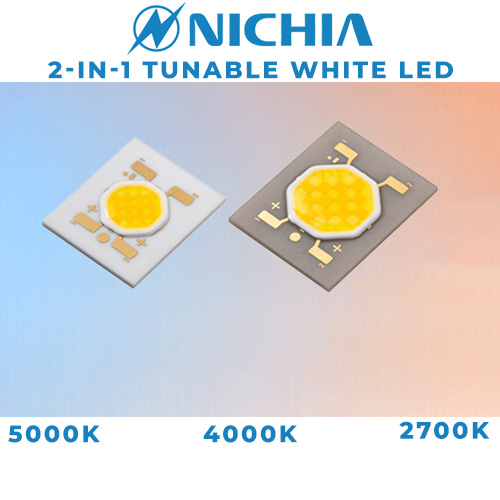

Nichia NVCWJ024Z-V1MT 24x19mm COB LED Tunable White 2 in 1 2700-5000K CRI90 2730lm

Nichia NVCWJ024Z-V1MT 24x19mm COB LED Tunable White 2700-5000K CRI90 2730lm

Nichia Corporation is proud to introduce the color tunable COB (Chip on Board) series with the goal of enriching people’s lives via human-centric lighting, including selecting and balancing color temperatures that respond to natural biological rhythms.

The common method to achieve these features on existing tunable light fixtures is to mount multiple LED packages onto one board. This approach provides flexibility in the design. Unfortunately, it also requires complexity and ingenuity to properly mix the color of each LED. Additionally, it was quite difficult to develop color tunable fixtures with narrow beam patterns and harmonized color. Nichia’s new color tunable COB series will solve these challenges and enable the lighting market to easily produce color tunable fixtures.

Nichia’s color tunable COB series is ideal for many applications, including commercial applications such as retail spot lights and even residential applications such as downlights. Imagine a retail store allowing the light color to be changeable based on their display or objects being lit. Or picture a family changing the color temperature of their home to best suit their natural biological rhythms. The opportunities are endless. Nichia’s color tunable COB will expand the market potential for future lighting fixtures and lighting environments.

The Nichia COB series are versatile ultra high power LEDs available in 4 standard sizes, with multiple power levels and CRI options. They are designed for use in high lumen fixtures, such as high bay, par lamps, flood lights and downlights.

Features Nichia COB series:

• Multiple power levels available up to 15,000lm
• Sizes: 15x12, 19x16, 24x19, 38x38
• 2- and 3-step colour bin, CRI ≥70, ≥80, ≥90 and special CRI options
• Leading COB performance with 170lm/W @ 5,000K Ra>80
• Proven aluminum oxide (ceramic) substrate quality and reliability

Technical details:

• Luminous flux: 3060 lm
• Color temperature: 2700-5000 K
• CRI: 90
• LED dimensions: 24x19x2 mm
• Typical current: 600 mA
• Typical voltage: 35.4 V
• Maximum voltage: 38.4 V
