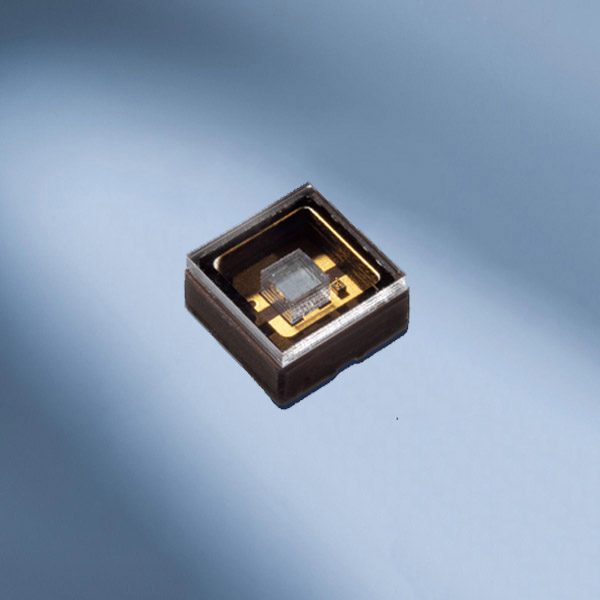

Nichia LED NCSU434A UVC 17mW 280nm 0.5W
- High performance Nichia UV-CLED 280nm
- Highest Radiant flux for single chip LEDs: 17.5 mW
- Long lifetime
- World Standard High Power UV-C LED
The new Nichia UV-C LED, the NCSU434A is the affordable UVC variant from world leader Nichia, with 70mW radiant power for only 0.5W of energy consumption.
A combination of UVC and UVA LEDs can substantially increase the disinfection capability, as detailed in this article on our blog.
Nichia is the largest LED manufacturers in the world and inventor of the blue (and thus also white) light emitting diode. The innovative Nichia research department is a pioneer when it comes to efficiency and establishes records on a regular basis.
Durability, brightness and homogeneity are among the major strengths of the Nichia brand. Furthermore, the fine selection allows greater added value for professional processing.
Features
- High performance UV-C NCSU434A SMD LED with 280nm and 17.5mW typical radiant power
- Typical voltage 5.3V, current 100mA
- Typical power consumption: 0.5W
- 120 deg viewing angle
- Dimensions (LxWxH): 3.5x3.5x1.72mm
Application areas
- Disinfection
- Sterilization
Warning Actinic UV danger for eyes and skin
Ultra violet radiation in the wavelength range of 200-400nm may cause inflammation of the cornea as well as a UV erythema (sunburn) of the skin. The biological effectiveness of the UV radiation varies in the stated wavelength range and is described with the spectral response function (weighting scale) SUV.
See PDF documents for data sheet.
| Cod Produs | 37377 |
|---|---|
| Greutate bruta (g) | 1.000000 |
| Model LED | Nichia UV |
| Mod Instalare LED | Pentru lipire industriala SMT |
| Culoare | UVC Ultraviolet |
| Unghi de iluminare | 120° |
| Curent Recomandat | 350ma |
| Tensiune Tipica (V) | 5.3 |
| LED Power (W) | 0.5 |
| Lungime de unda (nm) | 280 |
| Cod Producator | NCSU434A UV-C |
| Producator | Lumistrips |
| Serie Producator | NCSU434A UV-C u280/B40-B55/P9d22-P11d22 |
